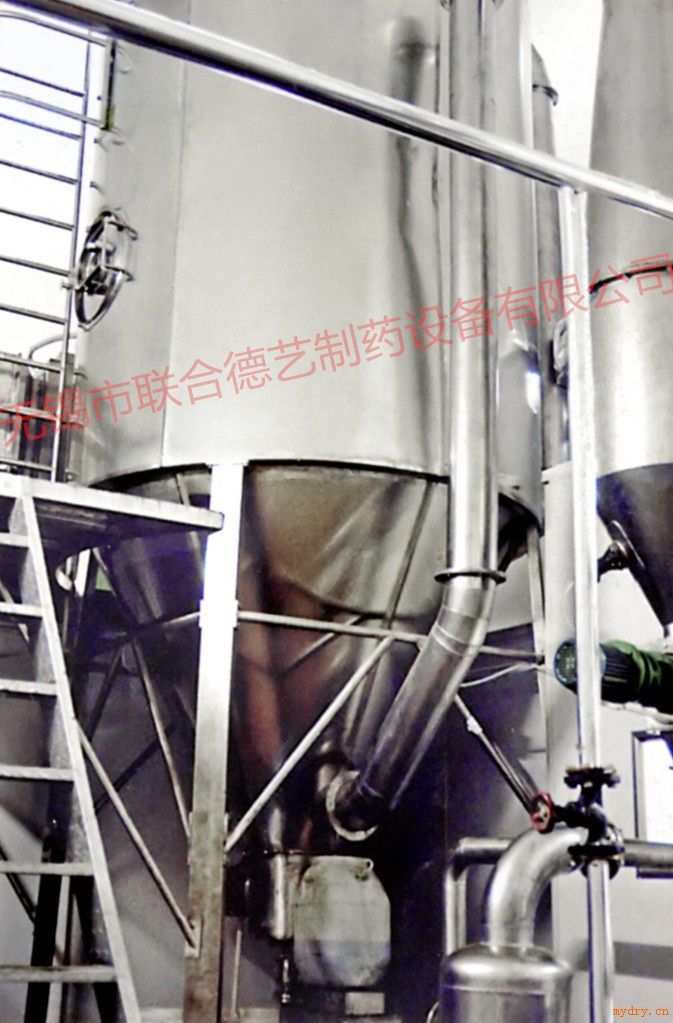

The special traditional Chinese medicine extract dryer is a special spray dryer used for solving problems in traditional Chinese medicine extracts and plant extracts. It has solved the followings existing in the previous LPG high-speed spray dryer during drying of traditional Chinese medicine extracts.

●Materials stick to the walls with low powder collection rate.

●Coking and deterioration of materials will occur after materials stay on the walls for a long time.

●Hard cleaning, not conforming to GMP requirements.

●Low output: The LPG-150 model spray dryer can only handle 50-60Kg/h liquid materials. In consideration of the above situations, our factory has designed the traditional Chinese medicine extract dryer according to the material properties of traditional Chinese medicine extracts and process requirements. The materials after drying have good colors and no deterioration, so that economic benefit of factories is greatly enhanced. Compared with the LPG high-speed centrifugal spray dryer, the traditional Chinese medicine extract dryer has the following features:

●It adopts three-level air purification to make the intake air meet the 100,000-grade requirements.

●It adopts the wall cooling device to make the inner wall temperature reach 80℃, so that materials staying on the walls will not coke.

●The whole volume is 3.5 times higher than that of the previous LPG standard centrifugal spray dryer.

●It adopts the quick opening washing device to meet the production requirements of various types of products.

●It adopts wet type dust removal to ensure that there is no dust and meets environmental requirements.

●It adopts the air wiping device to achieve satisfactory effect.

●The atomizer adopts variable frequency speed adjustment.

●It adopts PLC control, with program control system screen display.

●It can be equipped with the washing device.

●It adopts dry air closed conveying.
