首頁 >> 產品中心 >> 制粒干燥機 >> DLP多功能流化造粒包衣機
 DLP多功能流化造粒包衣機
關鍵詞:沸騰制粒機  制丸機  流化包衣機  沸騰干燥機
產品名稱: DLP多功能流化造粒包衣機
產品編號: 19
產品商標:
產品規格: DLP
參考價格: 面議
更新日期: 2011/11/27 9:50:25
被閱次數: 1121次


公司名稱:常州市智陽機械設備有限公司
會員級別:免費會員

詳細說明

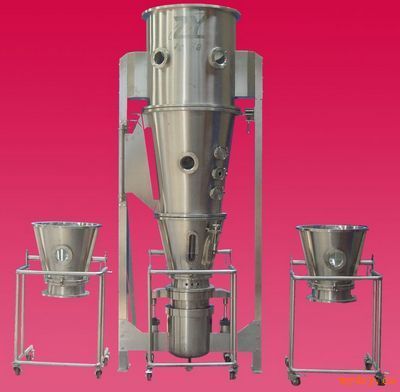

DLP多功能流化制粒包衣機

DLP fluid-bed granulator /pelletizer coater

設備特點:Features of equipment

制粒、制丸、包衣多種功能于一體。
粉體物料制粒。
粉體物料包衣。
粉體物料制丸。
中藥噴霧制粒及包衣。
制備 10-30 目大顆粒沖劑。
粉體、顆粒、丸的薄膜、腸溶、緩控釋包衣。
掩味、防潮、防氧化、防水、防熱、著色、隔離包衣。
粉狀、粒狀、團塊狀物料干燥。

Multi-function such as granulating, pelleting, coating in one machine.
Powder material granulating.
Powder material coating.
Powder material pelleting.
Chinese medicine spray drying, granulating and coating.
Make 10-30 meshes big granule.
Film coating of Powder, granules and pellets, enteric release, slow and control release coating.
Taste masking, odor, moistureproof, antioxidation, prevent water, heat insulation, coloration and separation coating
Powder, granule, agglomerate material drying.

應用概述 :General of applications

DLP 多功能制粒包衣實驗機是集噴霧干燥 -- 制粒 -- 離心制丸 -- 流化包衣干燥于一體的多功能設備。該機兼容多種工藝操作。特別適用于醫藥、食品、化工等行業多品種、多劑型制粒、制丸及包衣。
DLP Granulator/Coater/Pelleter is multi-function equipment integrated spray drying-granulating-centrifugal spray coating-fluid coating-drying in one body. The machine combined various process operations. Particularly it is suitable for granulating, pelleting and coating of various varieties in pharmaceutical industry, foodstuff industry and chemical industry,

技術參數:Technical Data

                        規格Specification

項目Item

10

15

20

30

45

60

90

120

投料量Capacity

Kg/批kg/batch

2.5-10

3-15

5-20

7.5-30

10-45

15-60

20-90

30-120

原料容器直徑Dir of container

Mm

700

800

900

1000

1100

1200

1400

1500

風機功率Power of fan

Kw

7.5

11

11

11

15

15

18.5

18.5

噪音Noise

db

風機隔離處理噪音小于75分貝No more than 75db Separated of fan

壓縮空氣

Compressed air

壓強 Pressure

Mpa

0.6

耗量Consumption

M3/min

0.9

0.9

0.9

0.9

0.9

0.9

1.6

1.1

蒸汽

Steam

壓強Pressure

Mpa

0.4-0.6

耗量Consumption

Kg/h

35

42

47

60

140

160

160

240

電加熱功率Power of electrical heater

Kw

按用戶要求設計By client

主機尺寸

Size of installation for reference

H1(mm)

2960

3350

3650

3720

3720

3850

3950

4190

H2(mm)

3320

3820

4120

4190

4190

4320

4420

4660

H3(mm)

2770

3130

3430

3500

3500

3630

3720

3975

B1(mm)

1160

1460

1560

1600

1760

1860

1960

2060

B2(mm)

1860

2460

2660

2860

3060

3260

4360

3660

L(mm)

1250

1400

1450

1500

1550

1600

1650

1700

180

250

250

280

280

280

280

315

所有參數僅作參考 , 視物料情況 , 本公司擁有變更權利 , 并不另行通知 .

*All datas are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
